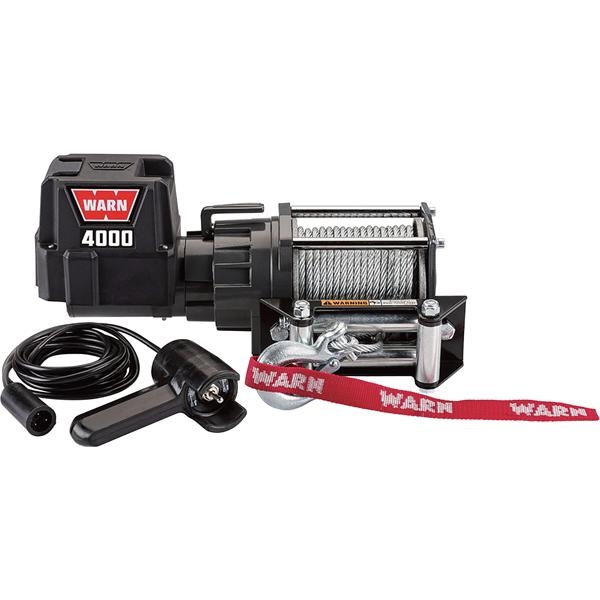

Warn Works 4000 nuovo modello

Name: Warn Works 4000 nuovo modello
SKU: WARN 4000
Price: 599.00 EUR
Availability: OutOfStock

Nuovissimo Warn wors 4000 lb

Cod. WARN 4000

4000 DC SPECS

Part Number: PN 94000

Rated Line Pull: 4,000 lbs. (1864 kgs)

Motor: Permanent Magnet

HP: 1.9 HP

Power: 12 volt DC

Switch Type: Remote with 12'(3.7 m) Lead

Drum Diameter: 2.375" (6.03 cm)

Gear Train: 3-Stage planetary

Clutch: Lever - Multi-Directional

Hole Pattern: 3 holes

Gear Ratio: 176:1

Brake: Dynamic and mechanical braking

Rope: Wire, 7/32" X 43' (13 m)

Fairlead: Roller

Electrical Leads: 2 - 6' (1.8 m) x 6 gauge cable

Warranty: 1 year limited

Replacement Wire Rope: PN 78987

12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	20.4(6.2)	31.5 Amps	1/4000(1814)
1000(453.6)	14.2(4.3)	65.3 Amps	3/3710(1683)
2000(907.2)	10.9(3.3)	96.1 Amps	3/3470(1574)
3000(1361)	7.7(2.4)	125.4 Amps	4/3250(1474)
4000(1814)	4.7(2.7)	155.4 Amps

Prezzo: € 599,00 (iva compresa)

Disponibile su ordinazione
